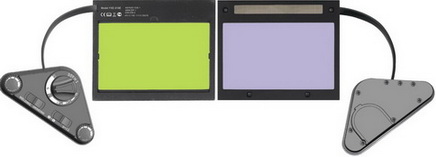

H12-818E
Characteristic:
Optical Classification: 1/1/1/2
Large view area 100x60mm(3.94"x2.36")
4 independent arc sensors
Variable shade from 5-8 and 9-13 so is suitable for all welding jobs
Outstanding performance in low Amperage TIG welding
With grinding function
Magnify /Cheat Lens capable
New headgear features unsurpassed fit and durability
| H12-818E | |
 | |
 | |
| OpticalClass | 1/1/1/2 |
| Filter Size | 110x90 mm(4.33x3.54") |
| Viewing Area | 100x60 mm(3.94x2.36") |
| Arc Sensor | 4 |
| Light State | 4 |
| Dark State | VariableShade 5-8/9-13 |
| Shade Control | External |
| Power On/Off | Fullyautomatic |
| Sensitivity Control | Low-High,ExternalStepless |
| Switching Time | 1/30,000s |
| Delay Time | 0.1-1s,External Stepless |
| Grind | External |
| Low Battery Indicator | Yes |
| Power Supply | Solar cell withreplaceable lithium battery |
| UV/IR Protection | Up to shade 16 |
| Operating Temp. | -10°C~ +55°C (14°F ~131°F) |
| Storing Temp. | -20°C~ +70°C (- 4°F ~158°F) |
